Niobium Metal Tube

Niobium Metal Tube

Brand: R04200, R04210, Nb1, Nb-Ti Implementation standard: ASTM B394-99 Supply status: seamless pipe, welded pipe. Size range: customized according to customer needs, the smallest can be produced to capillary. Product description: Niobium and niobium alloy pipes have the characteristics of high melting point, corrosion resistance, good cold processing performance, etc., and are widely used in the chemical industry, electronics industry, aviation and aerospace industry. They are mainly used to make high-pressure sodium lamps, structural materials of aviation and aerospace engines, reaction vessels of chemical processes, heat exchanger tubes, reactor internal components and sheath materials, etc. Adding zirconium to niobium can significantly improve the material's oxidation resistance and strength. At present, niobium-zirconium alloys are made into capillaries to supply the sodium lamp manufacturing industry.
Send Inquiry
Product Introduction

Product Basic Introduction



After continuous process optimization, Yusheng Metal niobium tubes feature uniform and superior grain structure, longer service life and better cost performance. The stable performance has won wide recognition from global customers and achieved stable batch orders.

Niobium is a high-value rare metal with high raw material cost. Our R&D team keeps optimizing production processes and solves multiple technical bottlenecks, which greatly prolongs the service life of finished niobium tubes and effectively cuts down customers' overall usage cost.



We supply both cut-to-length retail pieces and custom processed niobium tubes. Thanks to its high melting point, excellent corrosion resistance and outstanding cold workability, niobium tubes are widely applied in chemical, electronic, aerospace and other industries. Niobium and niobium alloy rods are also available as structural materials for aero-engine parts, rocket nozzles, reactor internals and cladding materials. Custom sizes and specifications are negotiable upon special technical requirements.



Product Parameter Table



Item Specification
Product Name Niobium Tube / Niobium Pipe
Brand Yusheng Metal
Material Grade Nb1, Nb2
Purity >99.5%
Total Impurity Content <0.4%
Specification Cold rolled seamless tube:5–110 × 1.0–4.5 × 2000–6000 mmSeamless tube OD ≥110 mm:110+ × 1.0–8.0 × 1000–2000 mmWelded tube:1.0–8.0 × 1000–2000 mm;150–2800 × 1.0–20 × 500–3000 mm
Execution Standard GB/T, ASTM B series and other relevant standards
Supply Condition Vacuum annealed / Hard state
Production Process Forging, rolling, drawing
Origin Baoji, Shaanxi, China
Customization Special sizes and specifications available after negotiation



Product Advantages & Features



Optimized grain structure: Process adjustment delivers uniform, fine grain size, bringing stable mechanical properties and better fatigue resistance.



Long service life: We have overcome multiple technical difficulties in niobium tube manufacturing. The service life is significantly improved, helping customers reduce replacement frequency and comprehensive cost.



Good corrosion resistance & high melting point: Adaptable to corrosive working conditions and high-temperature service scenarios; excellent cold workability for further bending, forming and secondary processing.



Flexible supply mode: Support cut-to-length retail sales and custom processing to meet small trial orders and large batch production demands.



Strict standard compliance: Manufactured in accordance with GB/T and ASTM B standards, stable impurity control, reliable batch consistency.



Inspection & Application



Inspection Methods

Dimensional inspection: micrometer, caliper for outer diameter, wall thickness and length tolerance

Chemical composition test: ICP / spectroscopic analysis to control impurity content

Metallographic test: grain size observation

Mechanical property test: tensile test, hardness test as required

Visual inspection: surface check for cracks, pits, scratches



Main Application

Chemical industry, medical devices, spectacle accessories, electric power, electroplating, electronics, aviation, aerospace, military industry, petroleum industry. Relevant niobium alloy products: structural parts for aero engines, rocket nozzles, reactor internals and cladding materials.



product-1752-1080

product-1074-1305

Baoji Yusheng Metal Technology Co., Ltd.

1. Production scope: tantalum, niobium, vanadium, zirconium, hafnium, etc.

Production products: plates, strips, foils, rods, wires, tubes, particles and other processing profiles, support drawing processing,

2. Deep processing products: boats, crucibles, grounding rings, bolts, protective tubes, capillary tubes, sputtering targets, coating targets Materials, machined parts, high-temperature furnace heat shields, heating elements, furnace bodies (heating furnaces, annealing furnaces) corrosion-resistant equipment, etc.

product-4776-1194

product-4776-1398product-4776-1182

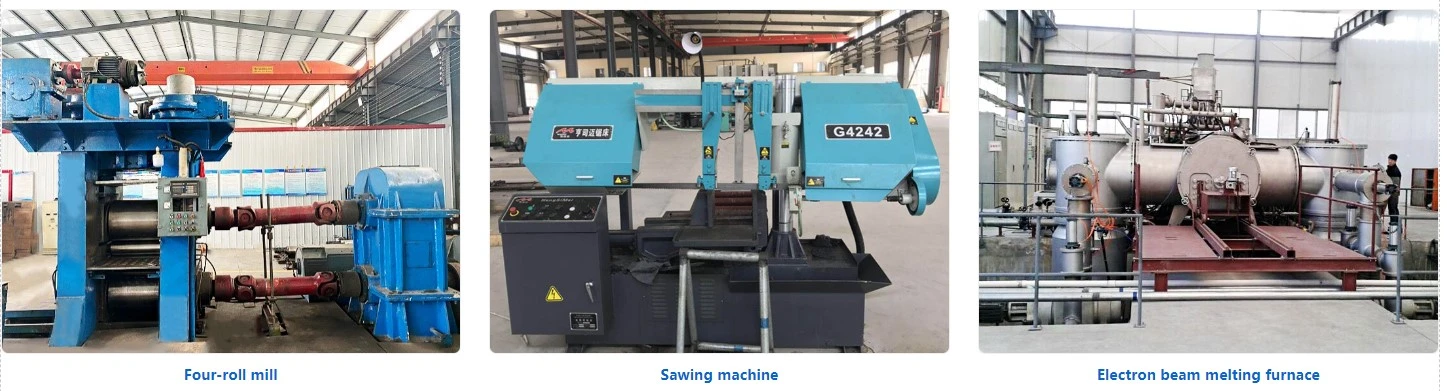

We have 350KW electron beam bombardment furnace, 2000T hydraulic press1700mm vacuum annealing furnace, one 42KW and two 15KW fine forging machines, 14-rollfine foil roling machineLDD120. LDD-40.LDD-15,LDD-8 double line pipe roling machine,2-roll 500T open bilet mill, 4-roll cold rolling machine6-roll cold rolling machine, 15Kw double-sided drawing machine, cylindrical grinding machine, skinning machine, surfacgrinding machine and a series of other equioment.

product-1447-391

product-1446-408

product-1440-387

The company has many years of technical experience and a high-quality work team, which can provide customers with perfect after-sales service in a timely manner. "Professional qualifications, building brands" is the company's business goal, and "excellent quality, reliable prices" is the company's business purpose. Since the establishment of our company, we have received strong support from people from all walks of life.

With the business philosophy of "realism, innovation, high quality, and low cost", we have established a perfect quality assurance system based on careful market adjustments, advanced equipment, technical talents, and scientific and rigorous management. While pursuing low prices, high efficiency, and fast speed, we pay more attention to quality assurance, strive to make every product for customers, seek development in growth, always maintain a perfect work attitude, and work towards the goal with hope and enthusiasm.

product-3402-1280













Hot Tags: niobium metal tube, suppliers, manufacturers, factory, customized, buy, price, quotation, quality, for sale, in stock, Seamless Niobium Tube, 99 95 Seamless Pure Niobium Pipe, ASTM B394 Seamless Pure Niobium Pipe, high purity seamless niobium tube, Seamless Niobium Tubes, Niobium Tubes
