Nickel Tungsten Sputtering Target

Nickel Tungsten Sputtering Target

1.Attributes Name:Nickel Alloy Sputtering Targets
2.Product Name:Nickel tungsten sputtering target
3.Element Symbol:Ni + W
4.Purity:3N、3N5
5.Shape:Planar sputtering target
Send Inquiry
Product Introduction

Product Basic Introduction



Nickel‑Tungsten sputtering target is a widely‑used alloy sputtering material combined by nickel and tungsten. It features low resistivity, outstanding thermal stability, oxidation resistance, high toughness and good machinability. Nickel‑tungsten tubular rotary targets have become highly‑popular target options for semiconductor thin‑film deposition.



Yusheng Metal specializes in manufacturing high‑purity, high‑density Ni‑W sputtering targets. The standard mass ratio of tungsten to nickel is 9.95:1 ~ 10.05:1. We supply monoblock or bonded planar targets with maximum dimension up to 820 mm, as well as rotary tubular targets. Multiple shapes are available: circular, rectangular, annular, oval, dog‑bone shaped, multi‑tiled and custom research‑size targets, compatible with mainstream magnetron sputtering guns.



Our Ni‑W targets apply high‑purification routes including crystallization and sublimation. Every batch is verified by XRF, GDMS and ICP inspection. Custom alloy composition, machining features (drilling holes, threading, beveling, grooves, backing assembly) can be tailored for semiconductor, PVD/CVD, display panel and optical coating processes.



Product reference link:https://www.tantalumysjs.com/products



Product Parameter Table



Item Specification
Product Name Nickel‑Tungsten (Ni‑W) Sputtering Target
Brand Yusheng Metal
Standard Mass Ratio W:Ni = 9.95:1 ~ 10.05:1
Custom Composition Custom W‑Ni proportion available
Purity 99.99% (4N)
Manufacturing Process High‑purity powder mixing → Cold isostatic pressing (CIP) → Semi‑dense blank forming with stainless‑steel hollow tube → Hot isostatic pressing (HIP) densification → Precision machining → Inspection
Supply Shape Planar, Rotary / tubular, circular, rectangular, annular, oval, dog‑bone, multi‑tiled, research small‑size
Max Planar Dimension Up to 820 mm
Processing Option Hole‑drilling, threading, beveling, groove opening, backing‑plate / backing‑tube bonding
Chemical Identifier Linear Formula: W/Ni; Pubchem CID:13066886; IUPAC Name: nickel; tungsten
Backing Material Copper / Molybdenum backing plate or backing tube optional
Packaging Vacuum‑sealed anti‑oxidation package, shock‑resistant cushion, export wooden case; attached material test report and packing list



Product Advantages & Features



Reliable powder‑metallurgy densification workflow Adopt cold isostatic pressing combined with hot isostatic pressing technology. Semi‑dense blanks are pre‑formed together with stainless‑steel hollow tubes, then further densified by HIP, realizing high‑density finished targets and reducing inner voids.



High‑purity raw‑material control Raw materials go through crystallization, solid‑state treatment and sublimation high‑purification. We complete powder mixing in‑house, strictly control trace‑level impurities to reach 99.99% purity.



Rich shape & machining flexibility Support planar up to 820 mm, rotary tubular targets and various special geometries. Secondary machining such as hole‑drilling, threading, beveling and grooving can match both legacy and latest sputtering equipment. Monoblock or bonded assembly are both selectable.



Uniform microstructure & stable thin‑film performance Fine‑grain microstructure guarantees consistent sputtering erosion rate. Low gas‑content material delivers homogeneous thin‑film for semiconductor, display and optical coating.



Strict multi‑dimensional inspection system All finished targets are examined by XRF, GDMS and ICP for composition analysis, together with dimension, flatness and surface defect inspection. Custom‑formula development for industrial and academic projects is supported.



Inspection & Application



Inspection Methods

Composition analysis: X‑ray Fluorescence(XRF), Glow‑Discharge Mass Spectrometry(GDMS), ICP‑MS for element ratio and trace impurity test.

Density measurement: Archimedes method for bulk‑density verification.

Metallographic inspection: Metallographic microscope for grain‑size and microstructure observation.

Dimensional & form test: Coordinate measuring instrument for dimension, flatness, hole position and tolerance check.

Surface visual inspection: Magnified inspection for crack, pit, scratch and machining defects.



Main Application

Semiconductor manufacturing: PVD / CVD thin‑film deposition, serving as key sputtering raw material for semiconductor chip production, compatible with mainstream sputtering equipment.

Display industry: Thin‑film coating for flat‑panel display devices.

Optical coating: Preparing functional optical thin‑film layers.

R&D laboratory: Custom research‑size targets for material‑science experimental development.

Extended products: Yusheng Metal also supplies nickel‑series semi‑finished goods including nickel bars, plates and nickel powder.



Yusheng Products

12
nickel-tungsten targets
product-1600-1200
nickel-tungsten metal



Company Strength

High purity Nickel Tungsten Sputtering Targets with the greatest possible density are a specialty of Baoji Yusheng Metal. For use in semiconductor, chemical vapor deposition (CVD), physical vapor deposition (PVD), display, and optical applications, metallic sputtering targets with the highest purity (99.99%) and smallest typical grain sizes are available. With planar target dimensions and configurations up to 820 mm, our industry-standard sputtering targets for thin film are available as monoblock or bonded products. They feature hole drill locations, threading, beveling, grooves, and backing that are designed to work with both traditional sputtering devices and more recent process equipment.

We provide targets in all configurations and shapes, including circular, rectangular, annular, oval, "dog-bone," rotatable (rotary), multi-tiled, and others in standard, custom, and study sized dimensions, which are all compatible with all standard guns. The most effective methodologies, such as X-Ray Fluorescence (XRF), Glow Discharge Mass Spectrometry (GDMS), and Inductively Coupled Plasma, are used to examine all targets. (ICP). Crystallization, solid state, and other extremely high purification processes like sublimation are used to produce materials.

Baoji Yusheng Metal specializes in creating unique compositions for industrial, academic, and proprietary purposes. Any rare earth metal can be cast into rod, bar, or plate form by Baoji Yusheng Metal, along with other machined forms. The company also works with the majority of other advanced materials. We also manufacture nickel in the form of bars, powder, and plates. On request, additional forms are available.

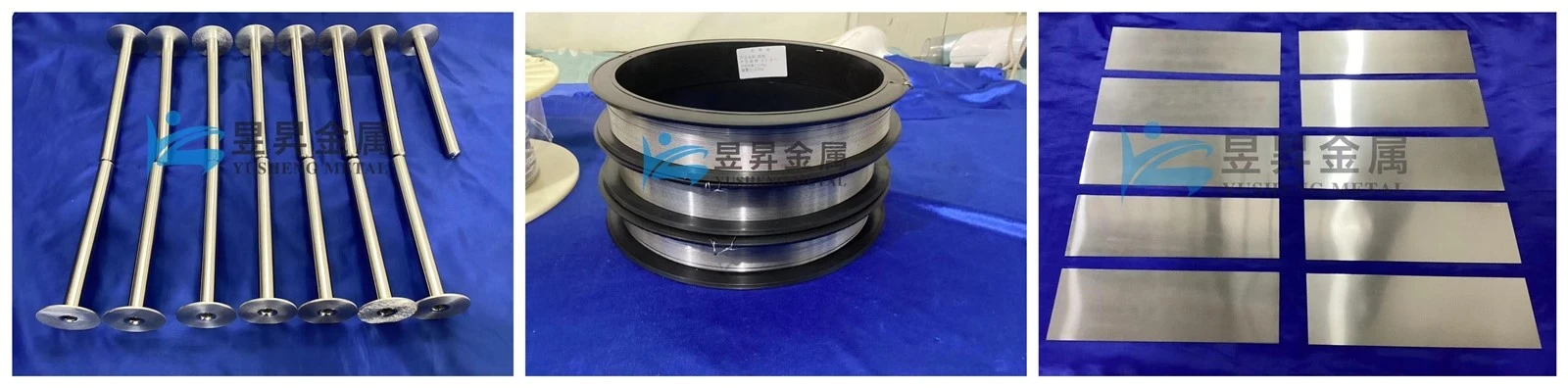

Products Show

product-4776-1398

product-4776-1194

product-4776-1182

  Equipment Show

product-1477-390

product-1447-391

product-1446-408

Why Choose Yusheng Metal Nickel‑Tungsten Sputtering Targets?



Complete powder‑metallurgy manufacturing capacity We master the whole production chain: powder blending, cold isostatic pressing, hot isostatic pressing densification and precision machining. We are not merely resellers, so we can tightly control density, purity and microstructure consistency.



Diversified product geometry capability We can deliver planar targets up to 820 mm as well as nickel‑tungsten rotary tubular targets, plus special‑shape targets such as dog‑bone and multi‑tiled types to satisfy diverse equipment requirements.



Powerful custom‑development capability Beyond standard W‑Ni mass ratio 9.95:1‑10.05:1, we can develop special custom compositions for industrial projects, proprietary technical requirements and academic research. We also offer full‑set machining and backing‑bonding service.



Authoritative inspection means Every batch adopts XRF, GDMS and ICP testing. Complete test documents can be provided for customers' incoming quality audit.



Broad rare‑metal product portfolio Apart from Ni‑W sputtering targets, we can also supply related semi‑finished materials (nickel bars, plates, powder and other advanced alloys), realizing one‑stop material procurement support.

product-1600-1036
