The target material is the target material for high-speed charge energy particle bombardment. By replacing different target materials (such as aluminum, copper, stainless steel, titanium, nickel target, etc.), different film systems can be obtained (such as super hard, wear-resistant, anti-corrosion alloy film, etc.). Tantalum sputtering target is mainly used in electronics and information industry, such as integrated circuits, information storage, liquid crystal display, laser memory, electronic control devices, etc.; it can also be used in the field of glass coating; it can also be applied to wear-resistant materials, high-temperature corrosion resistance, high-grade decorative supplies, and other industries.
Send Inquiry
Product Introduction



Product Basic Introduction



Yusheng Metal tantalum sputtering targets are high‑purity refractory‑metal consumables for magnetron sputtering PVD coating. Magnetron sputtering is an advanced physical vapor deposition technique. Under vacuum environment, ion‑source‑generated high‑energy ion beams bombard the target surface; kinetic‑energy exchange ejects target atoms which then deposit uniformly onto substrate surfaces to form functional thin‑films.



According to shape classification, tantalum sputtering targets include square, round and special‑shaped custom targets. Our tantalum targets feature high purity, high density and fine‑grained microstructure. They are widely adopted for semiconductor integrated circuits, solar photovoltaic cells, recording media, flat‑panel displays and functional workpiece surface coating.



Besides pure tantalum targets, we supply a complete series of tantalum‑alloy sputtering targets: tantalum‑silicon, tantalum‑aluminum, tantalum‑tungsten, nickel‑tantalum, cobalt‑zirconium‑tantalum, tantalum nitride, tantalum carbide, tantalum boride, tantalum pentoxide and more.



Product reference link:https://www.tantalumysjs.com/products



Product Parameter Table



Item Specification
Product Name Tantalum Sputtering Target
Brand Yusheng Metal
Material Grade Ta1, Ta2, RO5200, RO5400
Purity 99.95% (99.99% optional)
Density 95‑99%
Standard Dimension Length<300 mm; Width<300 mm; Diameter<300 mm; Thickness<1 mm
Dimensional Tolerance ±0.1 mm
Surface Roughness 3.2 Ra
Shape Type Square, round, special‑shaped custom target
MOQ 1 KG
Backing Option Cu / Mo backing plate, bonding service available
Supply Form Monoblock or bonded target
Packaging Vacuum anti‑oxidation sealed package, shock‑proof cushion, export wooden case; attached material test report and packing list



Product Advantages & Features



High‑purity & high‑density performance: Strictly controlled raw‑material impurities, target density reaches 95‑99%. Low porosity effectively reduces arcing and particle generation during sputtering for stable thin‑film quality.



Multiple‑shape & flexible custom capability: Supply standard square, round targets as well as non‑standard special‑shape targets. We support custom dimension, roughness and backing‑plate bonding to match diverse magnetron sputtering equipment.



Rich tantalum‑alloy target portfolio: Beyond pure tantalum targets, we produce a full range of tantalum‑based alloy / compound sputtering targets for diversified thin‑film‑process requirements.



Stable microstructure: Fine and uniform grain structure ensures consistent sputtering‑erosion rate and homogeneous deposited thin‑film.



Strict finished‑product inspection: Every batch undergoes composition, dimension, surface and metallographic inspection to satisfy incoming‑audit requirements for semiconductor and photovoltaic manufacturers.



Inspection & Application



Inspection Methods

Chemical composition test: XRF, ICP‑MS for purity and trace‑impurity analysis.

Density test: Archimedes density measurement.

Dimensional test: Coordinate measuring instrument for dimension and tolerance verification.

Surface inspection: Roughness tester plus magnified visual inspection for scratches, pits and cracks.

Metallographic test: Grain‑size and microstructure observation upon customer request.



Main Application

Semiconductor & microelectronics: Diffusion‑barrier thin‑film for integrated‑circuit chips; tantalum‑related raw materials for tantalum‑capacitor manufacturing.

Solar photovoltaic & flat‑panel display: Functional thin‑film deposition for photovoltaic devices and display panels.

Recording media & workpiece surface coating: Protective and functional coating layers.

Extended Application of Tantalum‑Based Materials

Capacitor industry: Tantalum powder and wire for high‑end tantalum capacitors applied in telecommunication, data storage and implantable medical devices.

Aerospace high‑temperature alloy: Tantalum as additive for nickel‑based super‑alloys for aircraft‑engine turbine blades and land‑based gas‑turbine components.

Chemical & pharmaceutical equipment: Anti‑corrosion structural parts including containers, pipelines, valves and heat‑exchanger linings.


Our Sputtering Tantalum Targets


Baoji Yusheng Metal Technology Co., Ltd.

1
2
3

Tantalum target application

Capacitors
About half of the tantalum consumed each year is used in the electronics industry, mainly as powder and wires for capacitors. Tantalum capacitors are favored in space-sensitive high-end applications such as telecommunications, data storage and implantable medical devices.

Engine turbine blades
The metal's high melting point and corrosion resistance make it suitable for alloying applications. Tantalum is also used as an additive to nickel-based high-temperature alloys, and its main application is turbine blades for aircraft engines and land-based gas turbines.

Chemical Processing Equipment
Tantalum's high corrosion resistance and high temperature resistance make the metal an ideal structural material for containers, pipes, valves and heat exchanger linings in the chemical and pharmaceutical industries.

Tantalum Target Alloy Series
In addition to tantalum targets, we can also provide sputtering targets such as tantalum silicon alloy, tantalum aluminum alloy, tantalum tungsten alloy, nickel tantalum alloy, cobalt zirconium tantalum alloy, tantalum nitride, tantalum carbide, tantalum boride, tantalum pentoxide, etc.

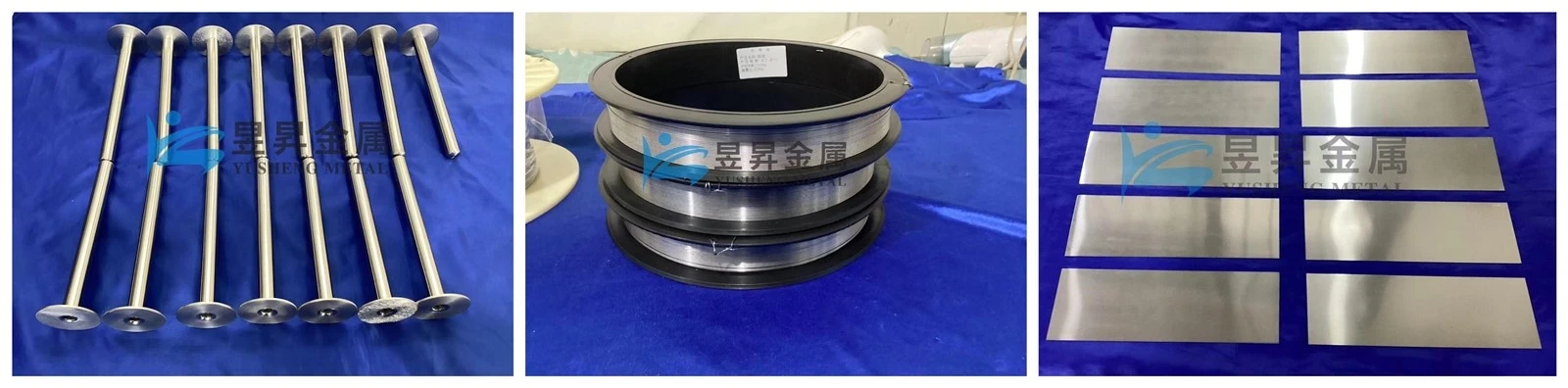

Products Show

product-4776-1398

product-4776-1194

product-4776-1182

Equipment display

product-1477-390

product-1447-391

product-1446-408

If your project happens to require tantalum targets or other performance materials of tantalum alloys, please contact us and we will give you a quote and answer your questions within 24 hours!
